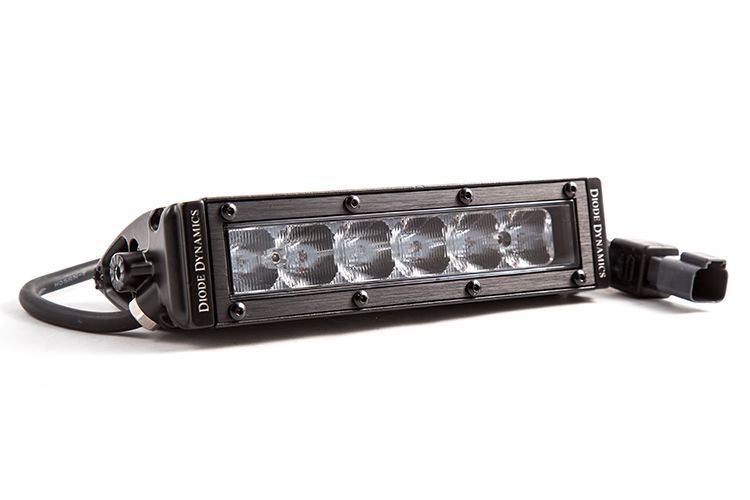

Diode Dynamics Stage Series 6" SAE/DOT White Light Bar
Elevate your driving experience with the Diode Dynamics Stage Series 6" SAE/DOT White Light Bar. This compact yet powerful light bar is engineered for those who demand superior lighting performance. Equipped with advanced TIR (Total Internal Reflection) optics and high-intensity automotive-grade LEDs, it ensures maximum efficiency and focus, delivering a pure white light that cuts through darkness with ease. Whether you're on a rally course or navigating off-road trails, this light bar provides the visibility you need to stay safe and in control.
What's Included
Everything you need is included with your product.
- LED Light Bar: One 6" Diode Dynamics Stage Series LED light bar.
- Wire Pigtail: Ensures a simple and secure connection.
- Universal Bracket Set: For easy installation on any vehicle make or model.
- Mounting Hardware: All necessary screws included for seamless setup.
- Installation Guide: Step-by-step instructions for quick and easy setup.
- 8-Year Warranty: Comprehensive protection for long-term peace of mind.
Why Choose Diode Dynamics Stage Series 6" SAE/DOT White Light Bar?

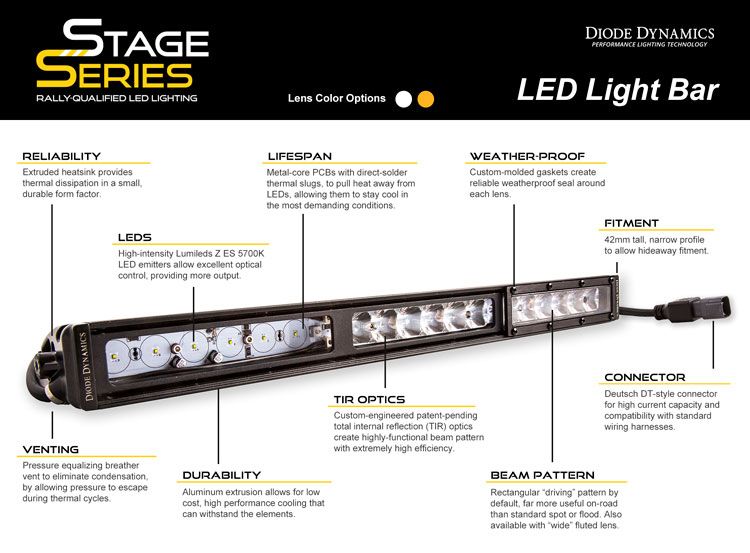

Designed and manufactured in the USA, the Diode Dynamics Stage Series light bar stands out for its unmatched quality and innovation. Its slim 42mm housing allows for low-profile fitment in tight spaces, making it an ideal choice for vehicles where space is limited. Unlike standard light bars, the Stage Series uses a patented TIR optic that minimizes light loss and glare, focusing the beam exactly where it's needed. Available in Driving, SAE Fog/Wide, or Flood beam patterns, this versatile light bar is perfect for any lighting need, from enhancing high beams to providing wide-area illumination.
![Diode Dynamics Stage Series 6 SAE DOT White Light Bar High Performance LED Light stage series 6 inch light](https://cdn.shopify.com/s/files/1/0766/1994/0150/files/Diode-Dynamics-Stage-Series-6-SAE-DOT-White-Light-Bar-High-Performance-LED-Light-stage-series-6-inch-light-bar.jpg?v=1724031905)
Precision Engineering and Versatility
The Diode Dynamics Stage Series light bar is more than just a lighting accessory—it's a tool designed for optimal performance in any condition. With beam patterns meticulously crafted using optical simulation modeling, you'll experience functional, targeted illumination that outperforms traditional optics. The SAE-compliant Driving pattern provides a focused beam for high-speed visibility, while the Fog/Wide pattern offers a broad, low beam perfect for inclement weather. The Flood pattern ensures uniform light distribution, ideal for low-speed maneuvering or worksite illumination.
![Diode Dynamics Stage Series 6 SAE DOT White Light Bar High Performance LED Light led light](https://cdn.shopify.com/s/files/1/0766/1994/0150/files/Diode-Dynamics-Stage-Series-6-SAE-DOT-White-Light-Bar-High-Performance-LED-Light-led-light-bar.jpg?v=1724031905)
Next-Generation Durability and Innovation
Built to withstand the harshest conditions, the Diode Dynamics Stage Series light bar has been rigorously tested for durability, including vibration, moisture intrusion, and extreme temperatures. Trusted by professional rally drivers and endurance racing teams, this light bar is a testament to Diode Dynamics' commitment to quality and innovation.
![Diode Dynamics Stage Series 6 SAE DOT White Light Bar High Performance LED Light stage series view](https://cdn.shopify.com/s/files/1/0766/1994/0150/files/Diode-Dynamics-Stage-Series-6-SAE-DOT-White-Light-Bar-High-Performance-LED-Light-stage-series-view.jpg?v=1724031905)
Diode Dynamics Stage Series 6" SAE/DOT White Light Bar | High-Performance LED Light Specifications
Weight | Lightweight for easy installation and low impact on vehicle dynamics |
Dimensions | 7 x 3 x 1.63 inches. |
Power | 26.6 watts |
Operating Voltage | 9-24V. |
Operating Temperature | -40°C to 85°C (-40°F to 185°F). |
LED Emitter | Luxeon Z ES. |
Connector | Deutsch DT Input |
Intrusion Rating | IP68 Waterproof for all-weather durability |
![Diode Dynamics Stage Series 6 SAE DOT White Light Bar High Performance LED Light front view](https://cdn.shopify.com/s/files/1/0766/1994/0150/files/Diode-Dynamics-Stage-Series-6-SAE-DOT-White-Light-Bar-High-Performance-LED-Light-front-view.jpg?v=1724031905)
FAQs For Diode Dynamics Stage Series 6" SAE/DOT White Light Bar | High-Performance LED Light
Is the Diode Dynamics Stage Series 6" Light Bar street legal?
Yes, when installed as a pair and aimed according to your state's regulations, the Driving pattern meets SAE J581 for auxiliary high beams, and the Fog/Wide pattern meets SAE J583 for fog lamps.
Can I use this light bar on any vehicle?
Yes, the included universal bracket set allows for installation on any make or model, ensuring a versatile fit.

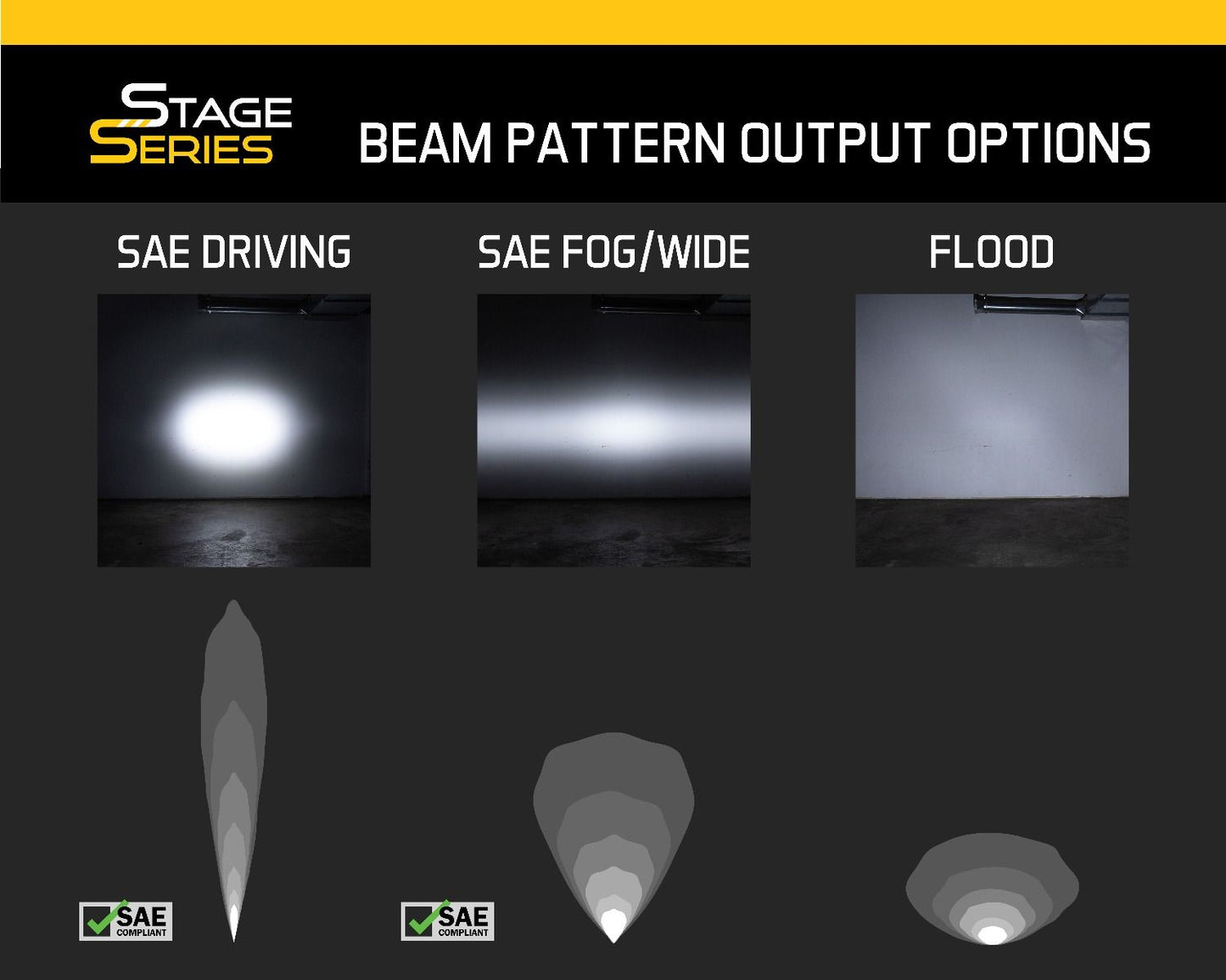

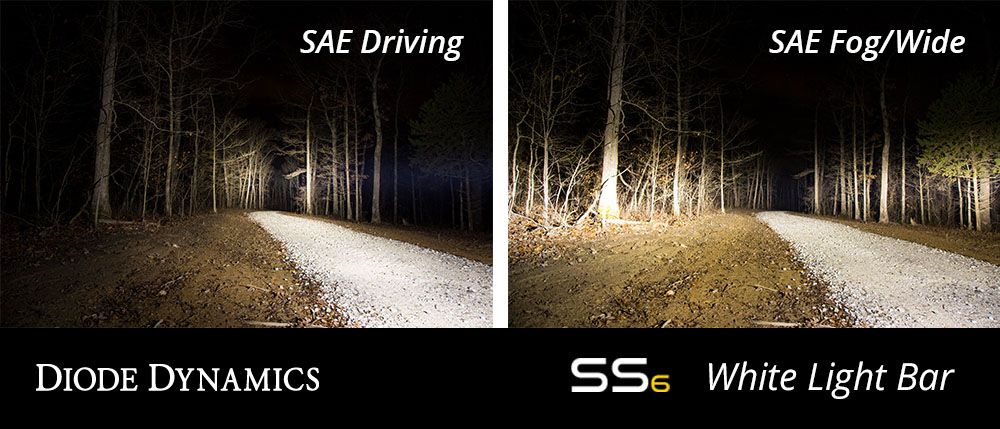

What is the difference between the beam patterns?
The Driving pattern offers focused illumination for high-speed driving, the Fog/Wide pattern provides a wide beam for poor weather conditions, and the Flood pattern delivers even illumination for low-speed or worksite use.
Is it easy to replace the lens?
Yes, the light bar is designed with a modular lens system, allowing you to change the outer lens to adjust the beam pattern or color with just a few screws.

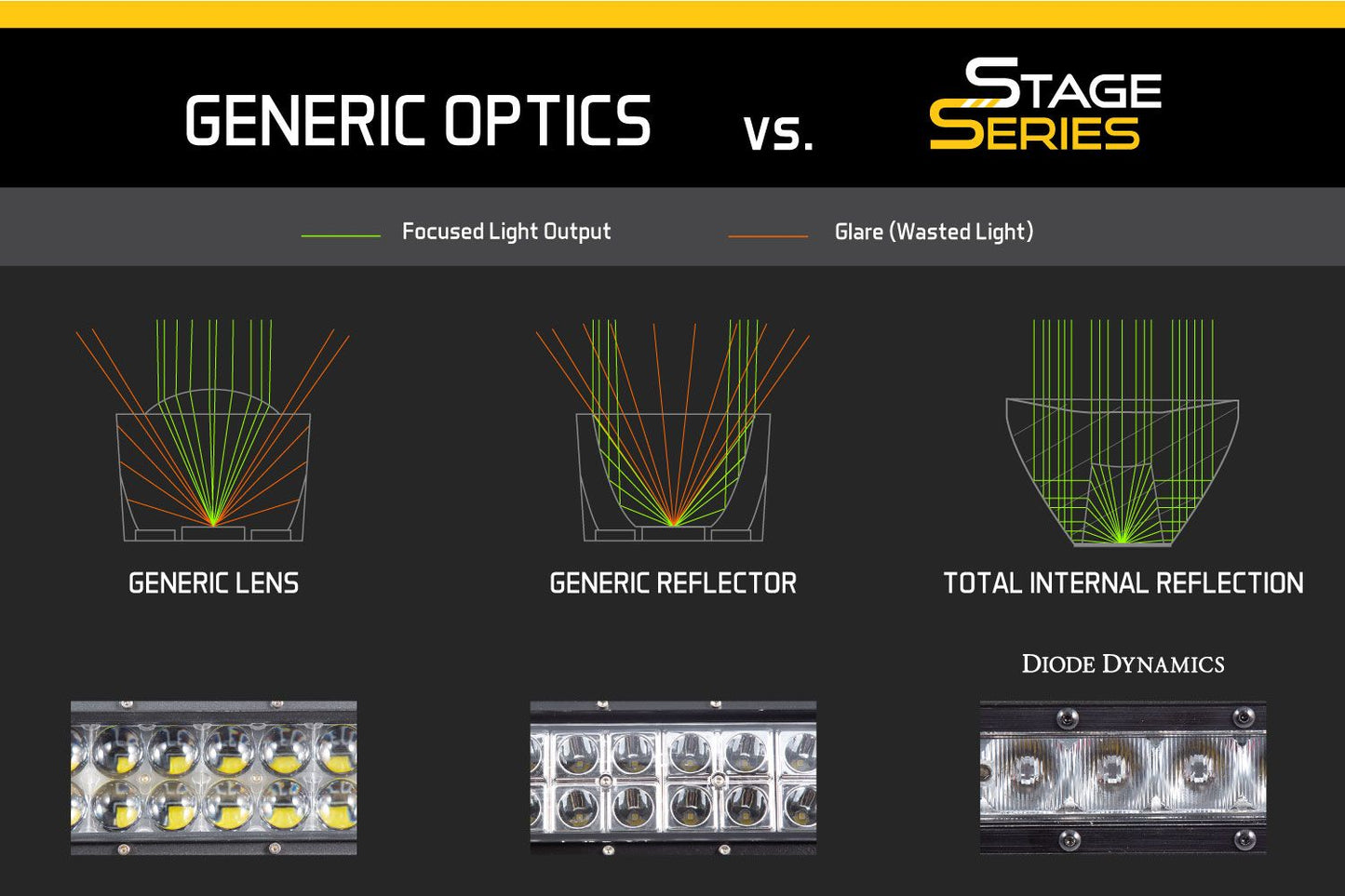

How does the TIR optic improve lighting performance?
The TIR optic collects all the light from the LED and directs it precisely where needed, reducing glare and improving overall efficiency compared to standard optics.
Diode Dynamics Stage Series 6" SAE/DOT White Light Bar Installation Manual
If you need more information on the specifications, installation, warranty, etc -- Please check out the Owner's Manual.
